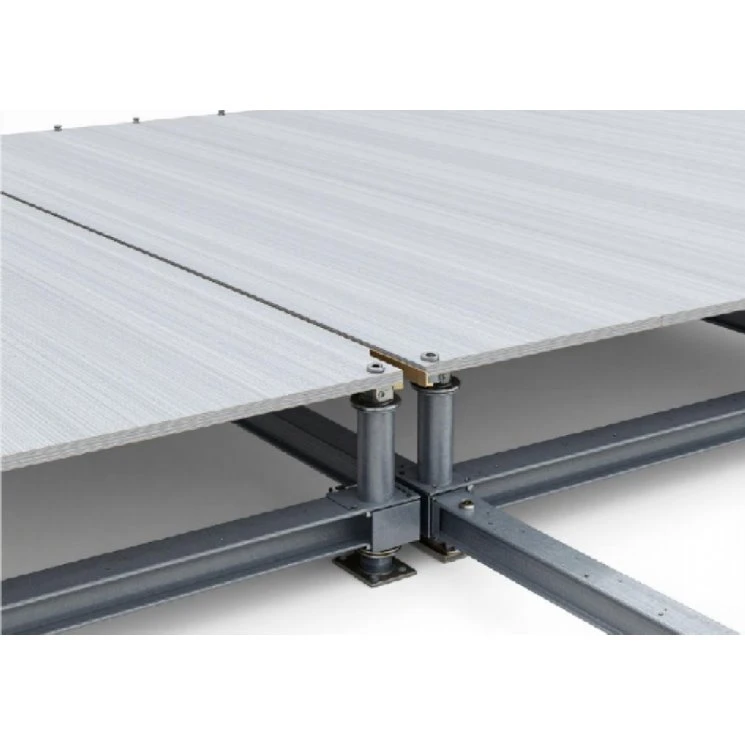

Sisitemu Yazamuye Sisitemu Igorofa
Sisitemu ya Fineco Seismic Raised Access Floor Sisitemu ni injeniyeri iremereye - yuburyo bwububiko bwubatswe bugamije kubungabunga ubusugire bwa gride no kurinda ibyuma bikomeye mugihe cyibiza. Harimo urusobe rukomeye rw'imigozi ihindagurika, ibyuma biremereye - bipima ibipimo, hamwe na panne ndende -, sisitemu ibuza kugenda kuruhande no kuzamuka hejuru. Itandukanya ubutumwa - ibikorwa remezo bikomeye biturutse ku butaka mu gihe byakira kabili ya - yuzuye kandi munsi ya - igabanywa rya HVAC.
Ibintu by'ingenzi
Bolted Stringer Diaphragm
Imashini ifatishijwe imashini ifunga imbaho hasi mu ndege ihuriweho na horizontal, irinda kwimuka kuruhande no gutandukana kumwanya mugihe cyo guhinda umushyitsi.
Guhuza Seismic Guhuza
Yakira uburemere - inshingano ya diagonal sway brace hamwe nuburemere - gauge riser imitwe kugirango igabanye imbaraga - imbaraga zogosha icyerekezo no kuzamuka guhagaritse.
Hejuru - Amahitamo Yibanze
Iraboneka muri sima ya infile yamashanyarazi hamwe na - ibyuma byose byo gusudira ibyuma bishobora kwihanganira imitwaro yibanze kugeza kuri lbf 1.500 kuri buri kibaho.
Inteko iringaniza neza
Micro - imitwe ishobora guhindagurika hamwe no kunyeganyega - ibinyomoro bifunga bikomeza kwihanganira uburebure bwuzuye bwuzuye (FFH).
Kugenzura amashanyarazi (ESD) Igenzura
Ubuso burangije butanga inzira yo kurwanya amashanyarazi kugirango igabanye ibicuruzwa bihagaze neza kandi irinde ibyuma byoroshye.
Ibisobanuro bya tekiniki
|
Parameter |
Ibisobanuro |
Ikizamini / Uburyo |
|
Ubwoko bwa Sisitemu |
Bolted Stringer Seismic Access Floor |
CISCA / EN 12825 |
|
Ibipimo |
600 x 600 x 30 kugeza kuri 40 mm |
Ubworoherane Bupima + / - 0.2 mm |
|
Ibikoresho |
Ubukonje - buzengurutsa ibyuma hamwe nuburyo bworoshye bwa beto yuzuye |
GB / T 228.1 |
|
Umutwaro Wibanze |
4.45 kN kugeza kuri 6.67 kN (1.000 lbf kugeza 1.500) |
Icyiciro cya CISCA A / EN 12825 Icyiciro cya 6 |
|
Umutwaro Uhebuje |
Kurenza 13.3 kN |
CISCA Igice cya 5 |
|
Kuzunguruka |
2.7 kN kugeza kuri 4.0 kN (10,000 cycle) |
CISCA Igice cya 6 |
|
Uburebure bwa etage (FFH) |
Mm 300 kugeza kuri mm 1.500 (Customizable) |
Umushinga - ubuhanga bwihariye |
|
Ubushobozi bwumutwaro wa Axial |
Kurenza 22.2 kN nta guhindagurika guhoraho |
ASTM E2353 |
Imikorere ya Seismic
Kubahiriza Kode
Yashizweho kugirango ahaze IBC 2021 na ASCE 7 ingingo zijyanye na Seismic Design Ibyiciro D kugeza F.
Kurwanya Kurwanya
Inzira ya sway struts ikurura ibintu byinshi - icyerekezo cyogosha icyerekezo, kugabanya imbaraga zingirakamaro zanduzwa mukubaka hasi.
Kuzamura inzitizi
Ibikoresho bifunga imashini birinda panele kuva kuri gride ya stringer mugihe cyihuta cya seisimike.
Ikizamini cyo Kugenzura
Iboneza ryinteko bigereranywa na seisimike yo kunyeganyeza kumeza kugirango hamenyekane niba imiterere ihagaze munsi yikibanza - cyihuta cyihuta cyubutaka (PGA).
Ibisanzwe
Hyperscale & Colocation Data Centre
Kurinda serivise ziremereye za seriveri, UPS ya batiri ya UPS, hamwe nogukwirakwiza amashanyarazi kurwanya ihungabana.
Isuku ya Semiconductor
Ikomeza gazi yo munsi hamwe na fluide yingirakamaro ikoreshwa mukuzunguruka gukabije hamwe nimbogamizi.
Amabwiriza & Igenzura
Irinda 24/7 ibikorwa byoherejwe hamwe nibikoresho byitumanaho kwimuka gitunguranye.
Igorofa yo gucuruza
Gushyigikira hejuru - yubucucike bwumurimo wa cabling gride hamwe nuburyo buhamye mumiterere yo hejuru - kuzamuka mubucuruzi.
Kwishyiriraho & Customisation
Imyiteguro yo munsi
Irasaba hasi ya beto yakize ivurwa hamwe na anti - bifunga umukungugu; urwego rwa laser rushyiraho umurongo werekana imirongo mbere yo guhagarara.
Kurinda Porotokole
Ibyapa byibanze (100 x 100 mm byibuze) byomekwa kumutwe ukoresheje uburemere - kwagura imisoro cyangwa ibyuma bya epoxy yubatswe.
Gukata ibicuruzwa
Amazi - guca indege yakira insinga za kabili, grilles zo mu kirere, hamwe na moderi zohanagura mugihe uzigama imbaraga zububiko.
Uburebure
Umuyoboro wa telesikopi wa telesikopi wakira munsi ya - kuva hasi ya mm 300 kugeza kuri mm 1.500.
Ibipimo & Ubwiza
CISCA
Ihuza na Ceilings & Imbere Sisitemu Yubaka Ishyirahamwe ryibizamini bya protocole kugirango igere hasi.
EN 12825
Bikurikiranye ukurikije amahame yuburayi kugirango azamure igorofa yerekeranye n'umutwaro uhebuje n'impamvu z'umutekano.
ASTM E84 / UL 723
Ibiranga gutwika hejuru byujuje icyiciro cya A flame ikwirakwira hamwe niterambere ryiterambere.
Gukurikirana ibikoresho
Uburebure bwibyuma, uburebure bwa micron ya galvanisation, hamwe nubucucike bwibanze bugenzurwa buri cyiciro mbere yo guterana.
Gukora & Inkunga Yumushinga
Ikigo cy'umusaruro
45,000 - kare
Ubushobozi
Umusaruro wumwaka urenga miriyoni 1,2 kwadarato yuburebure bwa etage, ukomeza ibihe byiza byo kuyobora kubikorwa - byoherejwe.
Inkunga yubuhanga
Muri - inzu yubuhanga bwubaka itanga ibishushanyo byamaduka, kubara imizigo yo kubara, hamwe nuburyo bwihariye bwo gutondekanya imitingito ijyanye na injeniyeri yububiko (SER).
Gupakira & Ibikoresho
Ibigize ibice, ubushyuhe - bipfunyitse, kandi bigashyirwa hamwe na pallet igaragara kugirango yorohereze ikibanza no kugabura.
Ibibazo Bikunze Kubazwa
Ikibazo: Nigute iyi sisitemu yazamuye igorofa itandukanye nigorofa isanzwe yinjira mubucuruzi?
Igisubizo: Igorofa isanzwe yubucuruzi ishingiye kuburemere - ikwiranye cyangwa ifata - kuri sisitemu yagenewe ibidukikije rusange. Sisitemu yimiterere ya Fineco ihuza urusobe ruremereye - rushyizwe kumurongo, imashini ifunga imashini, hamwe na diagonal sway imirongo yagenewe gukurura imbaraga zogosha impande zombi, gukumira izamuka ryikibaho, no kurinda ibyuma biremereye guhindagurika mugihe cyibiza byibiza.
Ikibazo: Ni utuhe turere tw’ibiza hamwe n’inyubako zubaka zishyigikiwe?
Igisubizo: Sisitemu yubahiriza IBC Igice cya 16, ASCE 7 ingingo z’ibiza, hamwe na GR - 63-CORE Zone 4 ibisabwa. Imibare yihariye irashobora gutangwa kugirango ihuze ibyiciro byubushakashatsi bwibanze (SDC D, E, na F) hamwe nibintu byihuta byihuta.
Ikibazo: Ni ubuhe bushobozi ntarengwa bwo kwishyiriraho ibikoresho bya seriveri?
Igisubizo.
Ikibazo: Uburebure bwuzuye (FFH) burashobora guhinduka nyuma yo kwishyiriraho?
Igisubizo: Yego. Iteraniro rya sitidiyo yomutwe kumutwe wicyicaro cyemerera micro - guhinduranya byongeweho cyangwa gukuramo mm 25 zo kuringaniza nyuma yikintu nyamukuru kimaze gushyirwaho, mugihe ibipimo byingenzi byuburebure byatoranijwe hifashishijwe umuyoboro wabigenewe wabigenewe mugihe cyamasoko.
Ikibazo: Ni izihe nyandiko zitangwa kugirango dusubiremo ibyubatswe?
Igisubizo: Dutanga impapuro zuzuye za tekiniki, raporo yikizamini cya CISCA na EN 12825, guhagarika icyitegererezo cya CAD na BIM, ibyemezo byurusyo rwibikoresho, hamwe numushinga - ibikoresho byihariye byo kubara seisimike byashyizweho kashe na ba injeniyeri babigize umwuga babisabwe.
Ikibazo: Nibihe bihe bisanzwe byo kuyobora kubikorwa byinshi byateganijwe?
Igisubizo: Ibicuruzwa bisanzwe biganisha ku minsi 20 kugeza 30 bitewe nubunini bwateganijwe, ibicuruzwa byabigenewe, no kurangiza ibisobanuro. Duhuza gahunda yo gupakira kontineri itaziguye hamwe nabatwara ibicuruzwa kugirango duhuze nibikorwa byo gutanga urubuga.
